EXOTEK Xray XB2 “Vader” Drag Race Chassis Conversion Kit

The Exotek Xray XB2 “Vader” Drag Race Chassis Conversion Kit is what you need to convert your Xray XB2 buggy platform into a no prep cash race contender. Recommended for experienced builders, this incredibly lightweight “street eliminator” chassis conversion set provides the legal 13″ wheelbase to fit under the hottest “narrow” no prep bodies on the market. This carbon fiber drag conversion set is intended for the Xray XB2 ’16-XB2 ’22. The Vader conversion kit uses a multi-drilled gear box plate that accepts most XB2 gearboxes and suspension hangers (’16-’22).

NOTE:

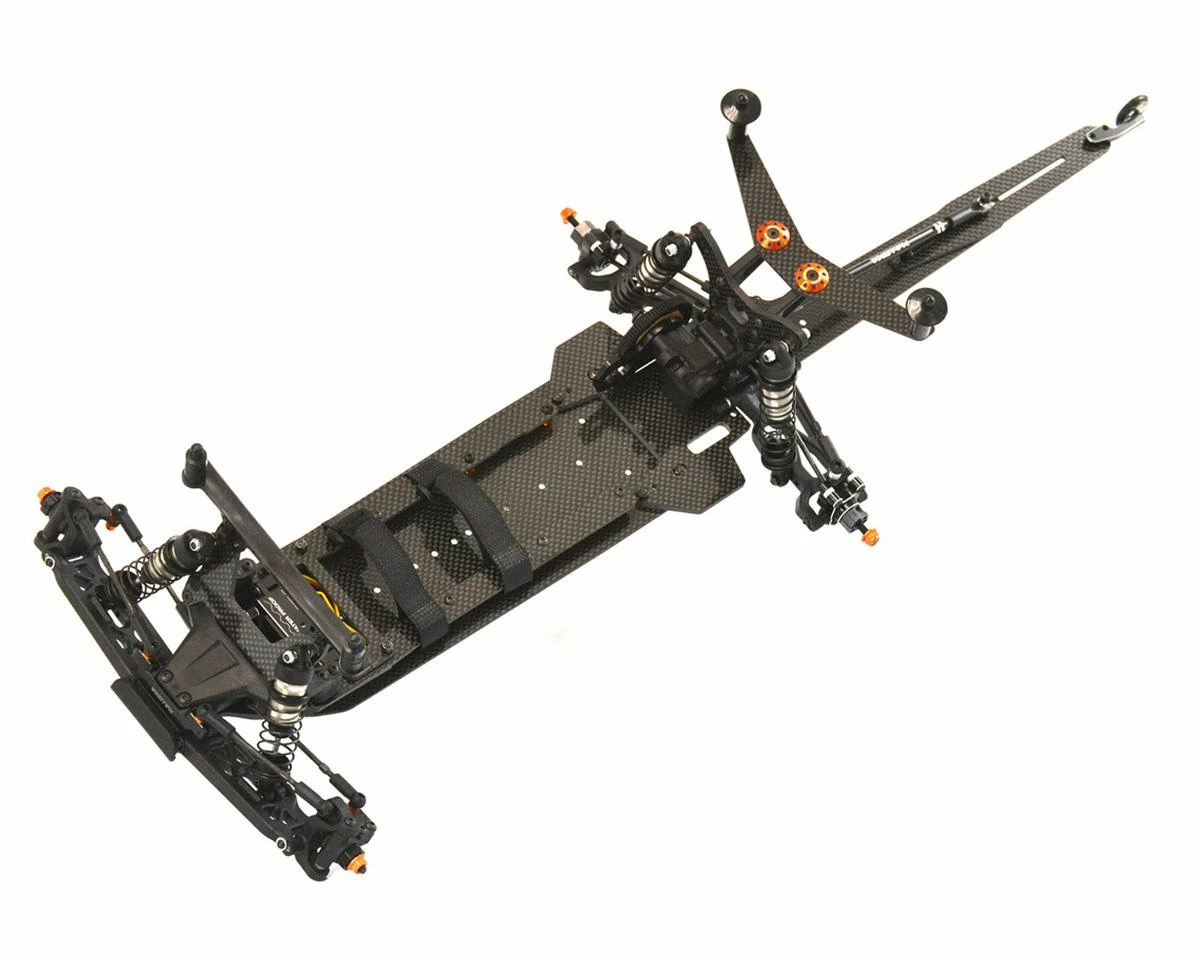

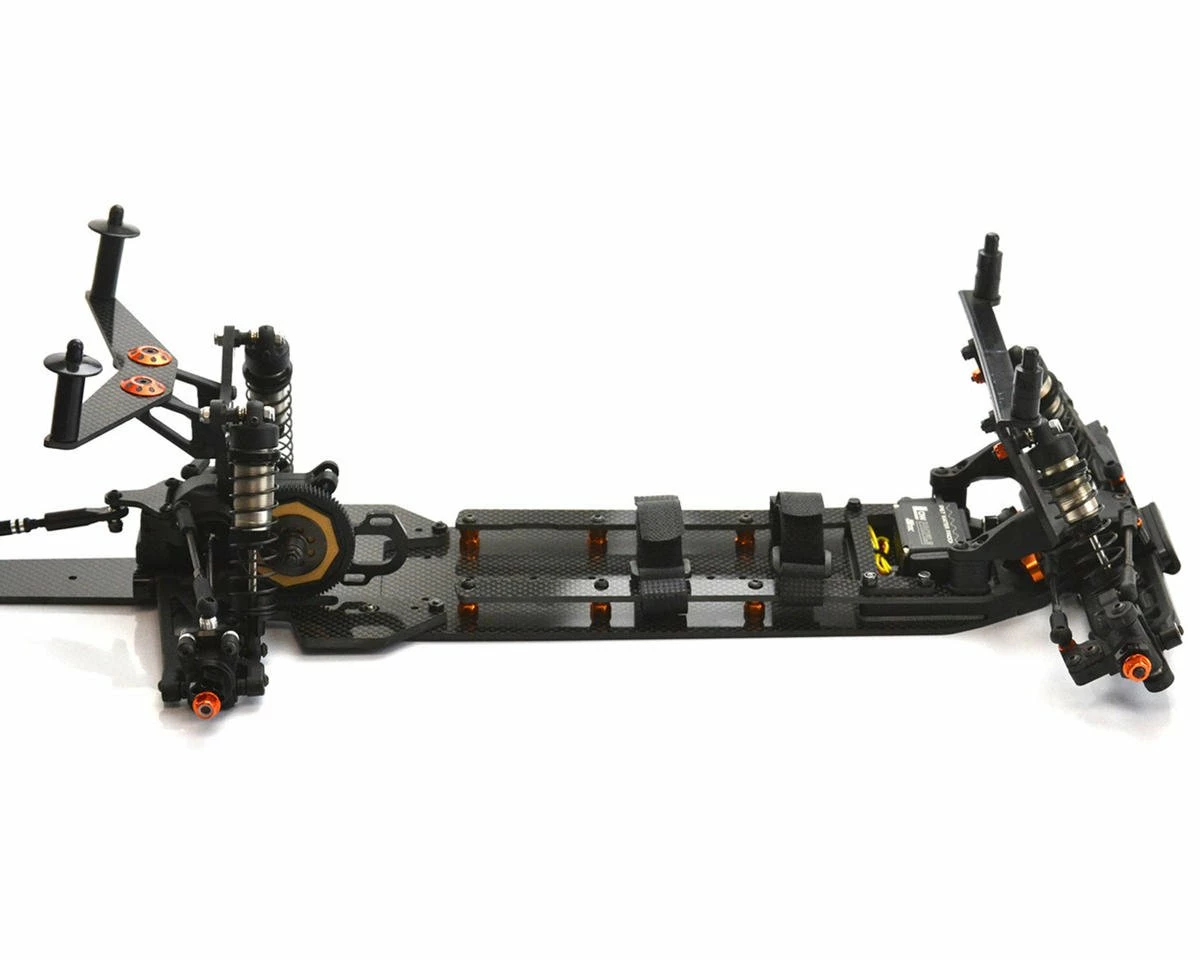

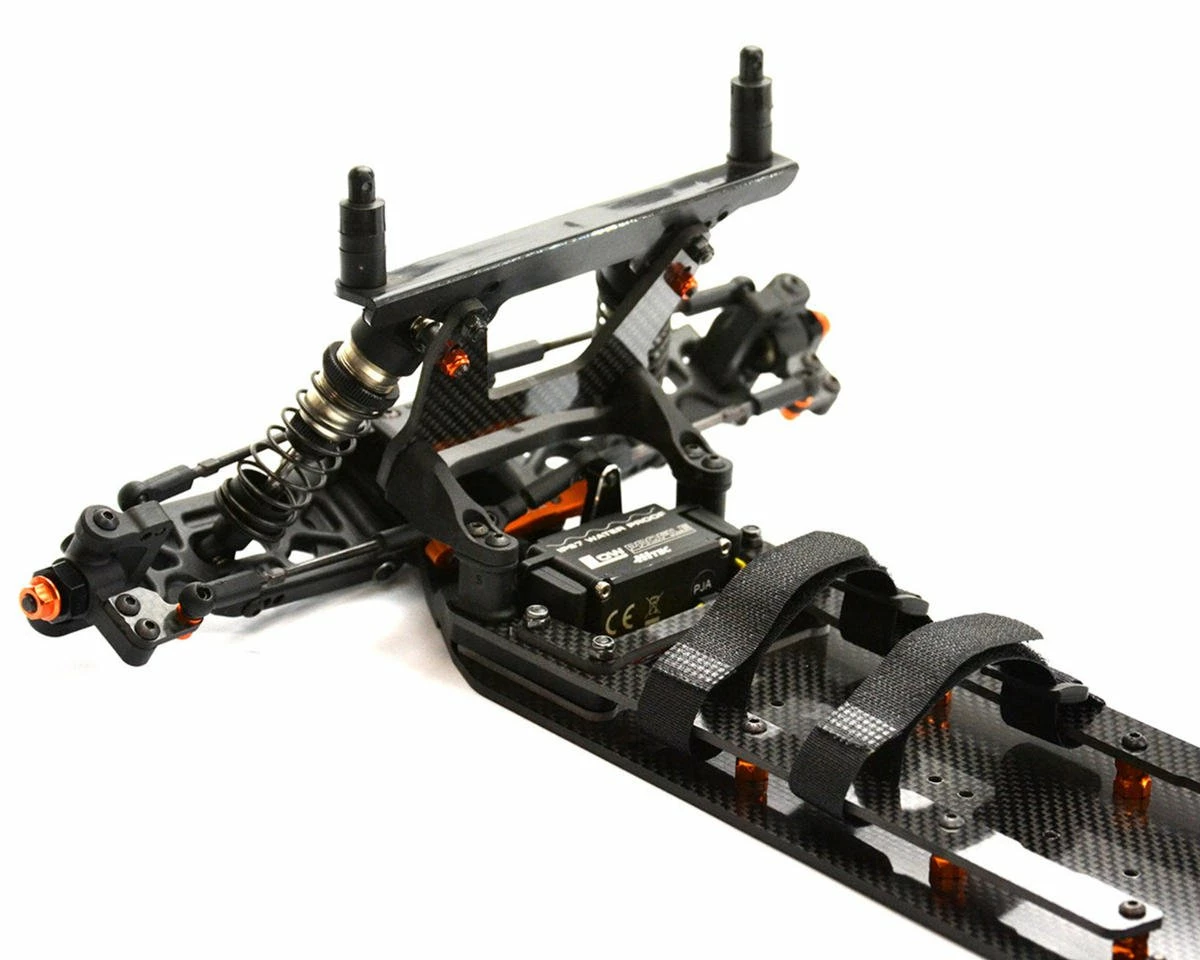

• Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

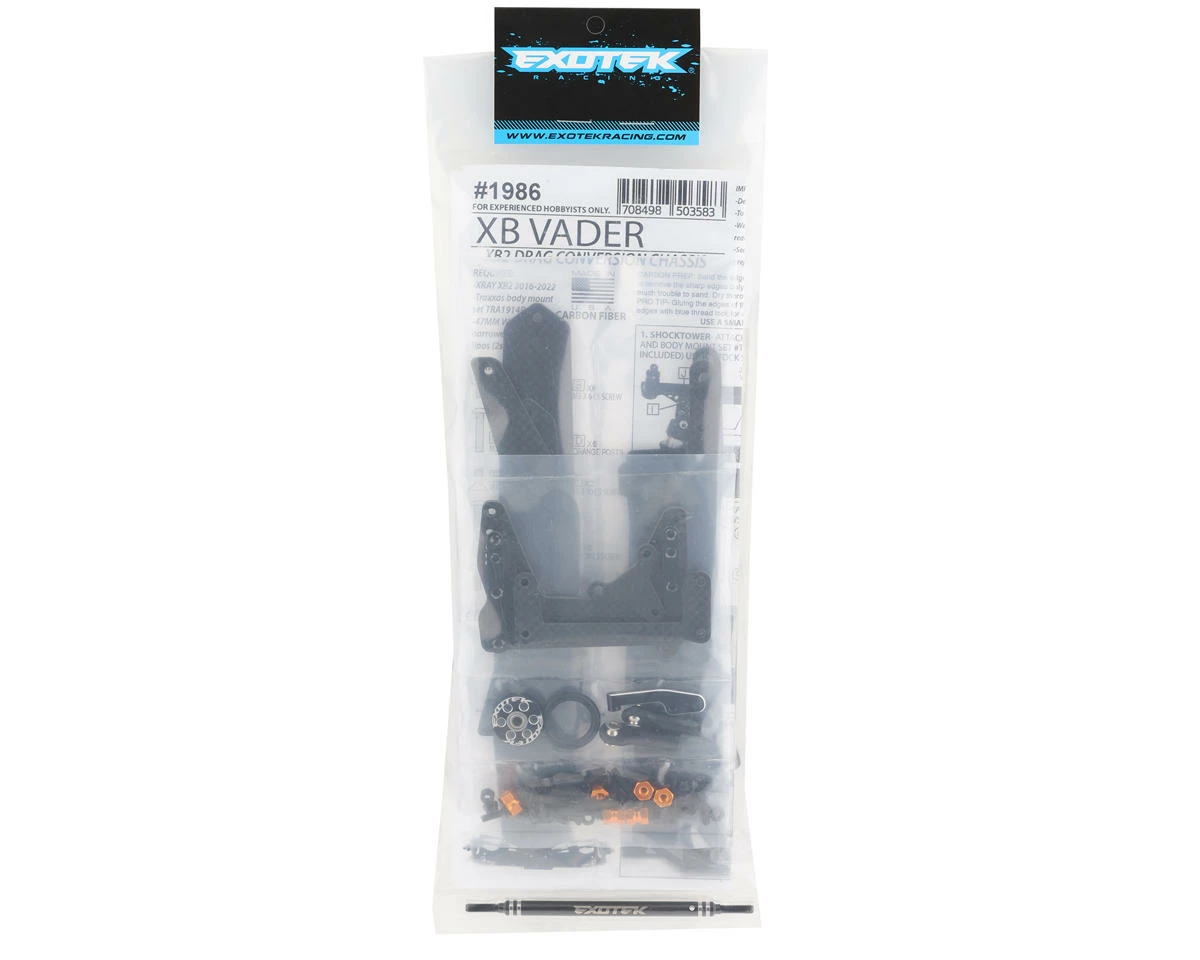

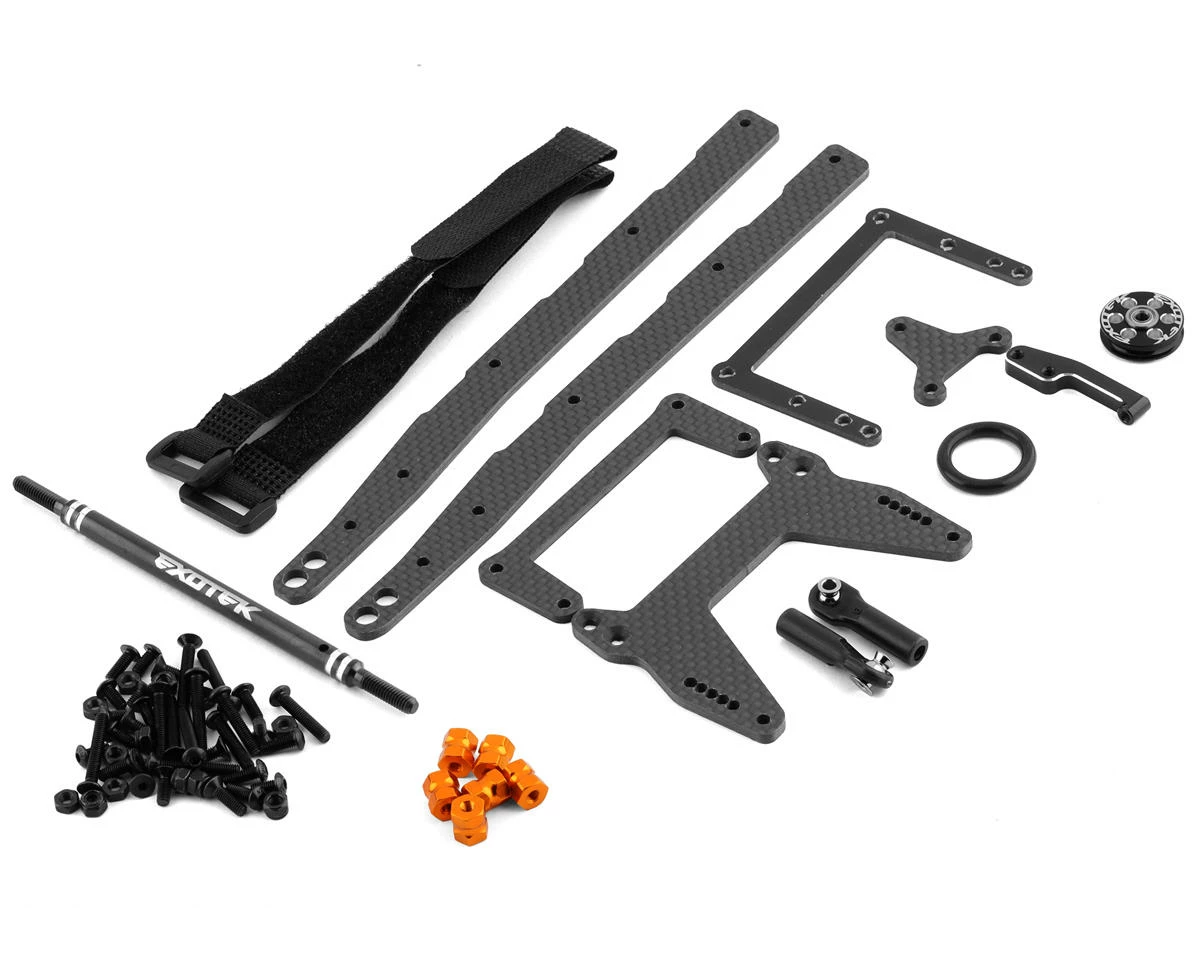

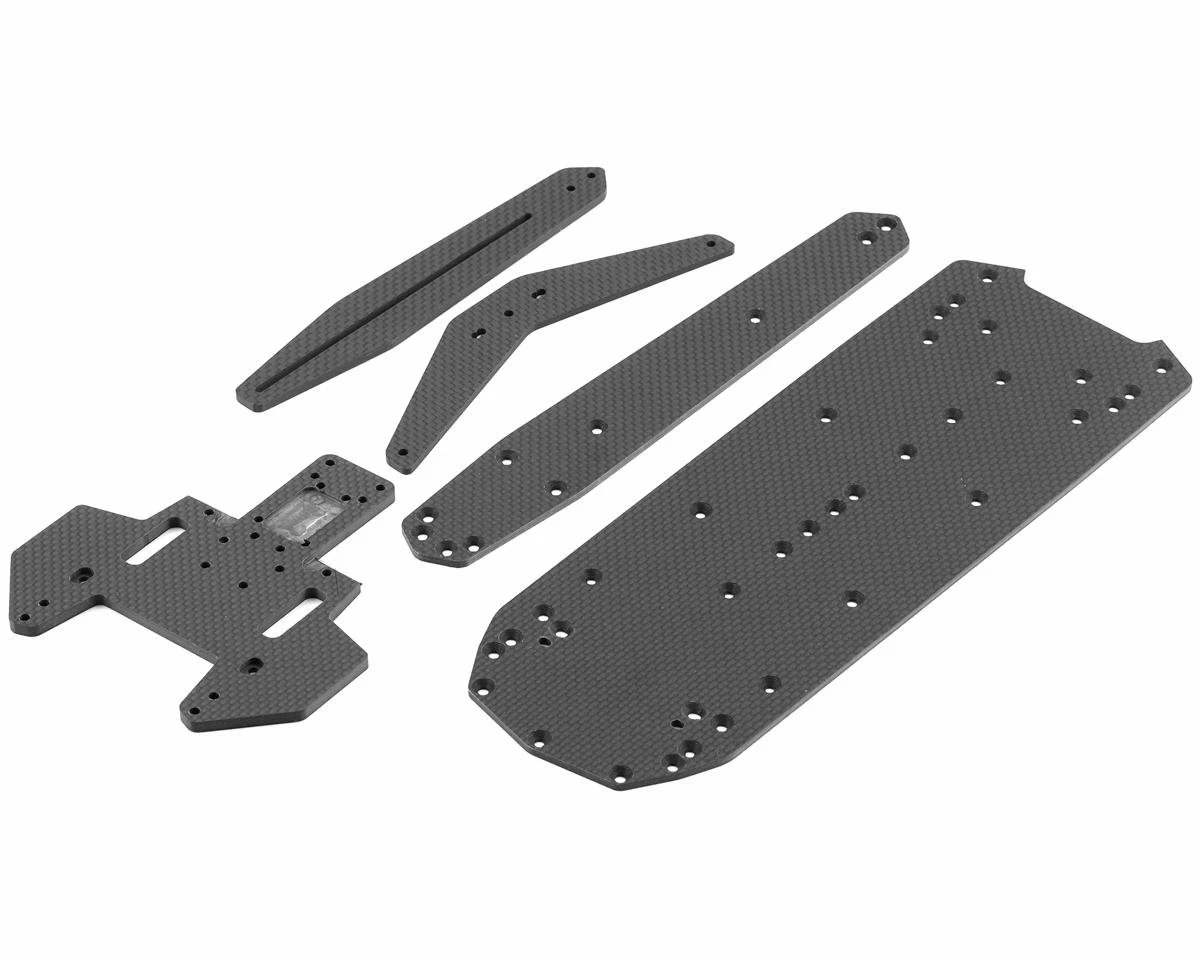

• The parts break down picture is of the conversion pieces that are included.
• To lower the rear ride height further than the stock XB2 use front spring sets on the rear shocks.

Features:

• Carbon fiber made and machined in the USA
• Heavy duty 2.5mm thick chassis, and side rail plates
• Carbon fiber adjustable wheelie bar with heavy duty titanium tie rod height adjuster.
• Extra stiff 4mm gear box plate
• Accepts 47mm wide or narrower shorty type drag racing packs or regular shorty packs with velcro hold downs.
• 2 level chassis design allows you to lower or raise the gearbox if desired.
• Includes a 3mm carbon fiber front shock tower to run a lower ride height as well as allow the use of a street eliminator body mount kit (Traxxas TRA1914R)
• Includes a carbon fiber rear body mount plate that bolts to the stock XB2 wing mounts for use with the Traxxas TRA1914R body post set.
• Includes steel hardware.

Needed to Complete:

• Xray XB2 ’16-’22 buggy
• Traxxas body mount set TRA1914R
• 47mm wide or narrower shorty type drag racing packs or regular shorty packs

This product was added to our catalog on February 23, 2023
